Horizontal Multi-Stage Centrifugal Pump

HL, HF, HC, HE series of non-self-priming horizontal multistage centrifugal pumps, through the centrifugal force generated by the impeller of the rotating pump to drive the rotation of the fluid to complete the liquid transport. The series is equipped with a non-standard Customized motor, which uses the motor shaft as the main shaft to closely connect the impeller, guide vane, mechanical seal, etc., and is mounted on the bottom plate to connect.

HL, HF, HC, HE series horizontal multistage centrifugal pump adopts the pull-back structure design of axial thread inlet and radial thread outlet, and its balanced impeller design reduces the axial thrust of the motor bearing and extends the service life of the motor bearing. Based on specific applications and installations in the domestic, industrial, and construction services markets, the HL, HF, and HC, HE series offer a variety of solutions to meet different usage habits.

The HL Series integrated design: connected directly to the motor flange through a single stainless steel inlet water body, the use of O-rings as sealing bushings reduces the possibility of leakage.

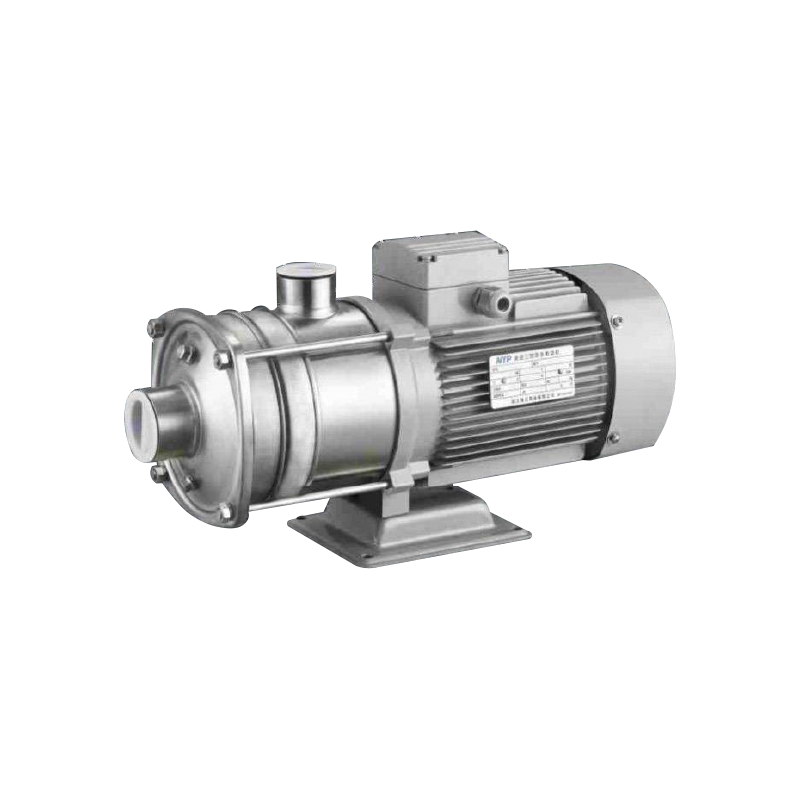

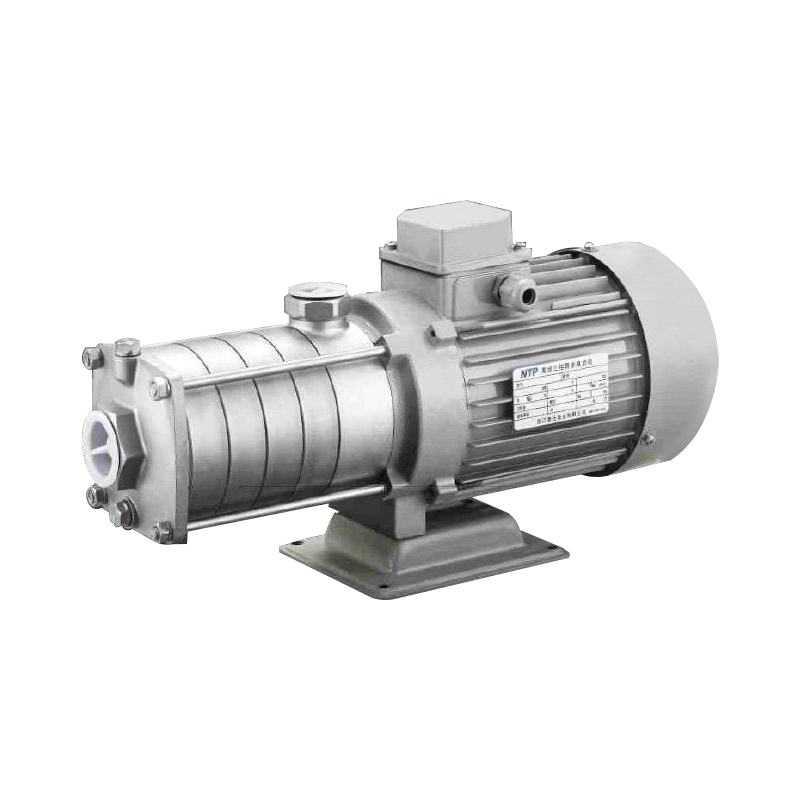

HF, HC series segment design: Through the pull rod, the O-shaped rubber ring and the externally mounted guide vane are tightly closed and tightened to the motor flange.

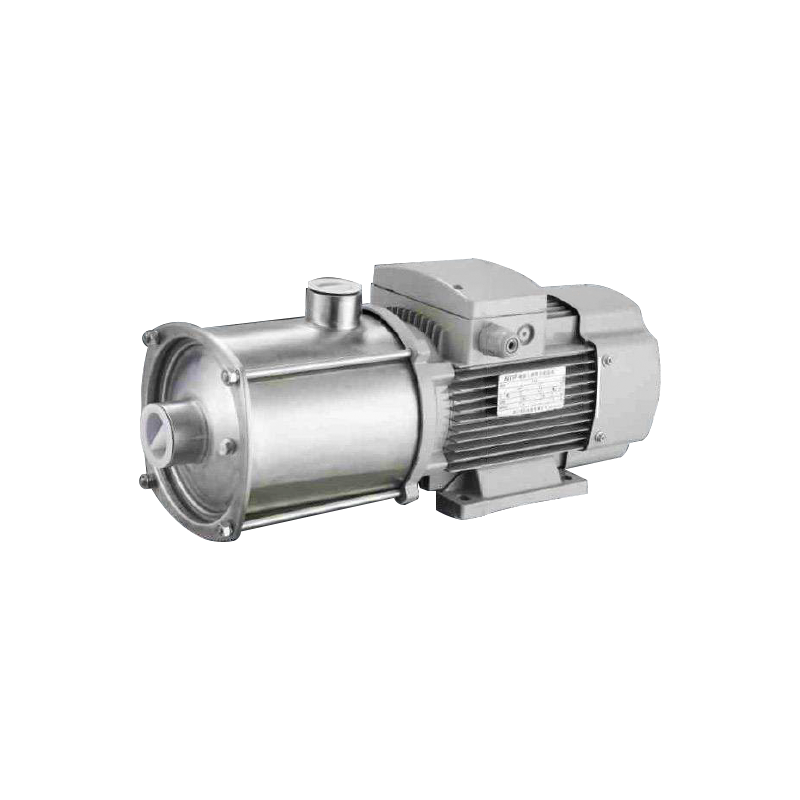

HE Series Sleeve design: is made up of a separate stainless steel welded casing and separate suction casing held together by an aluminum cast pump bracket and tie rod tightened in the motor flange.
