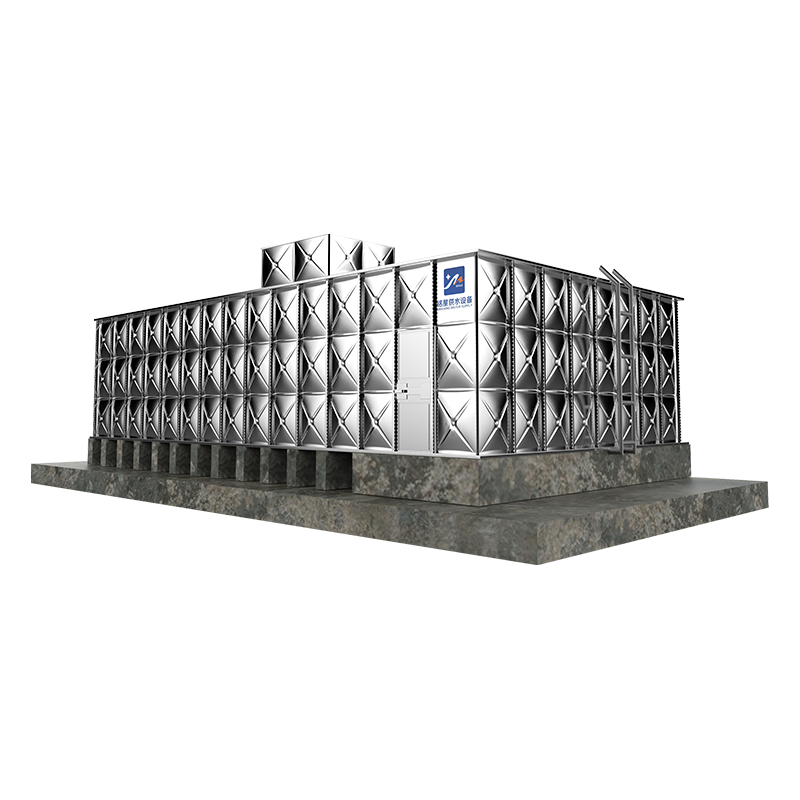

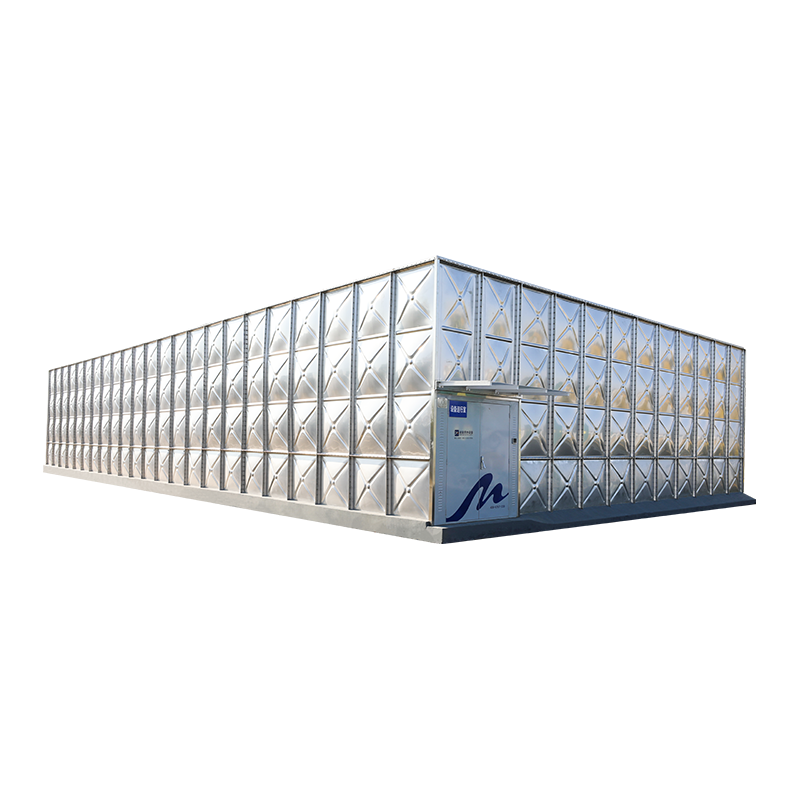

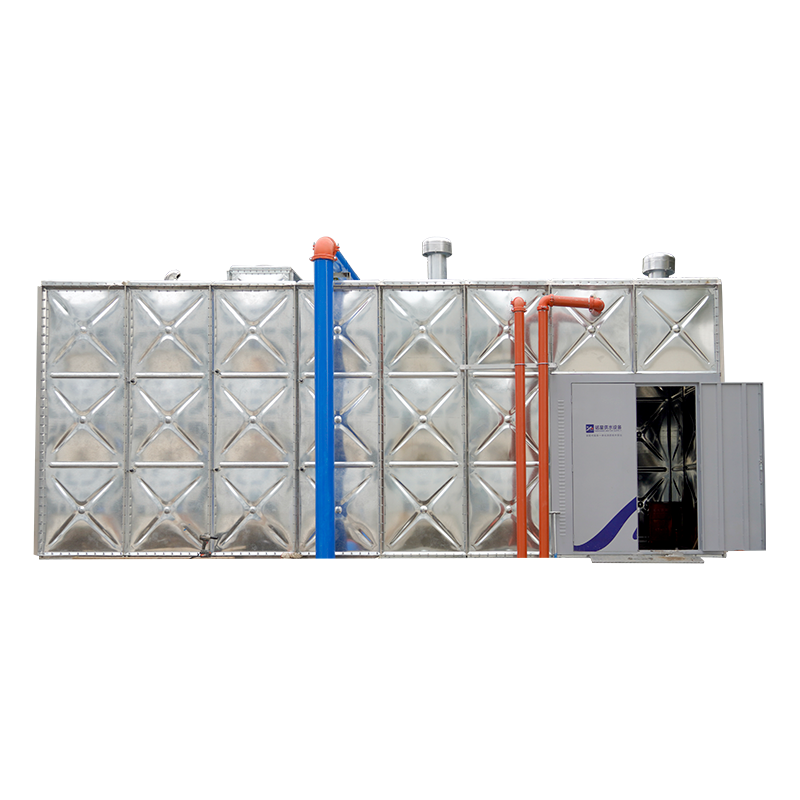

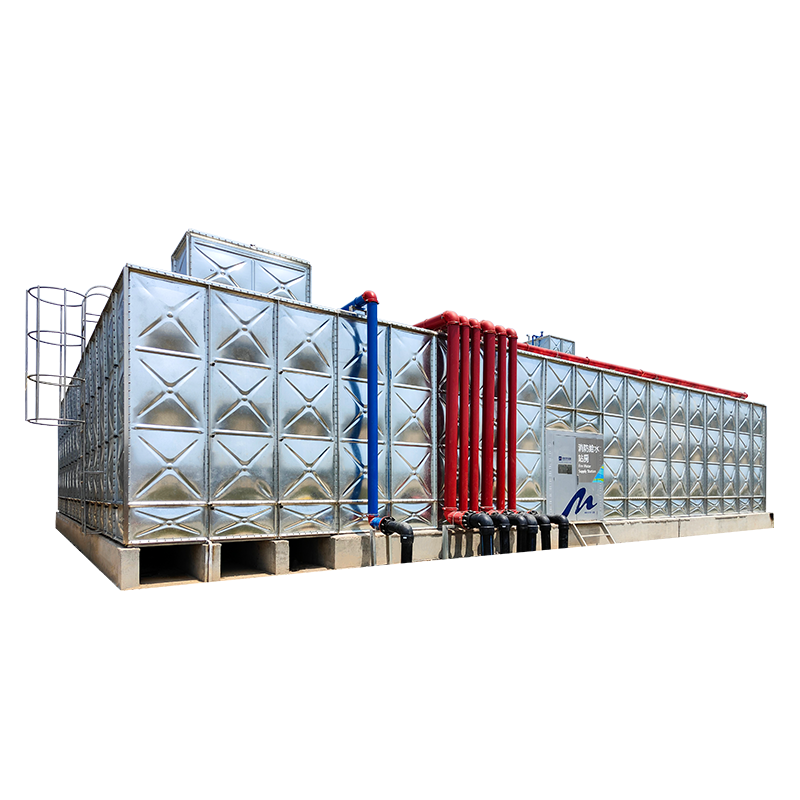

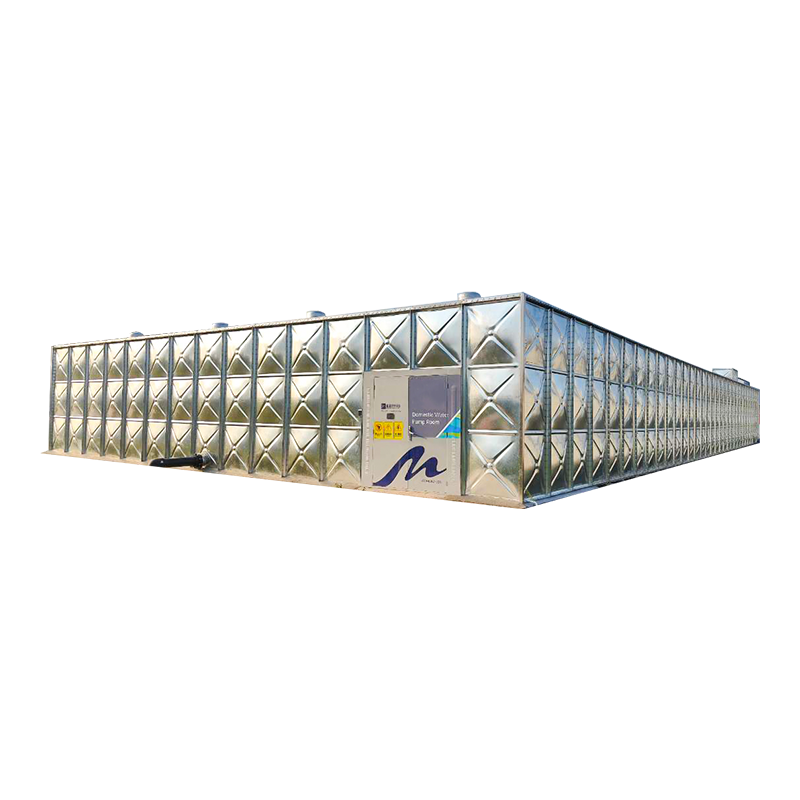

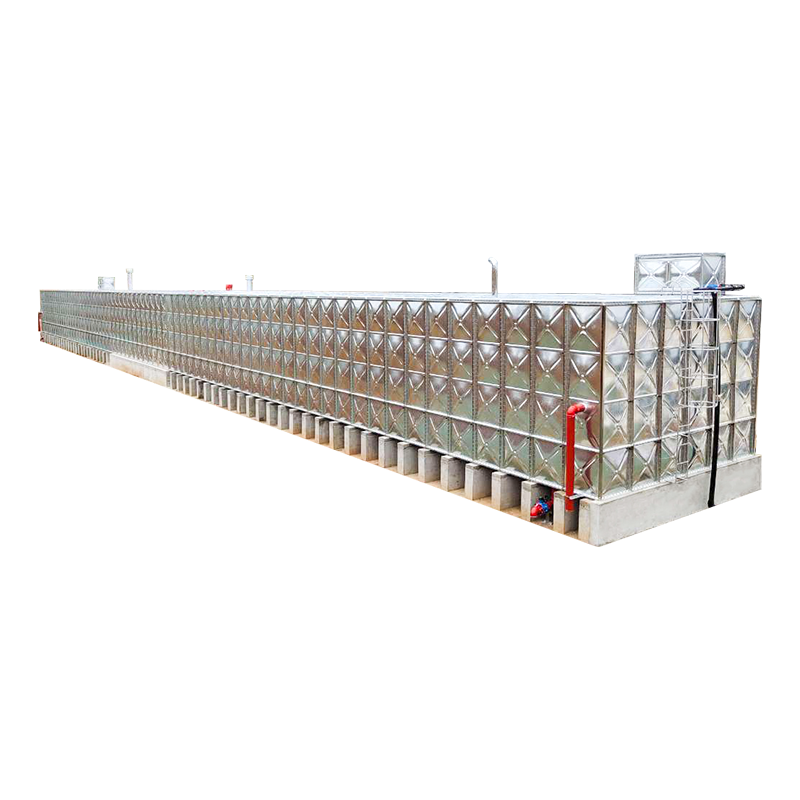

Hot-Dip Galvanized Assembly Bolted Sectional Water Tank

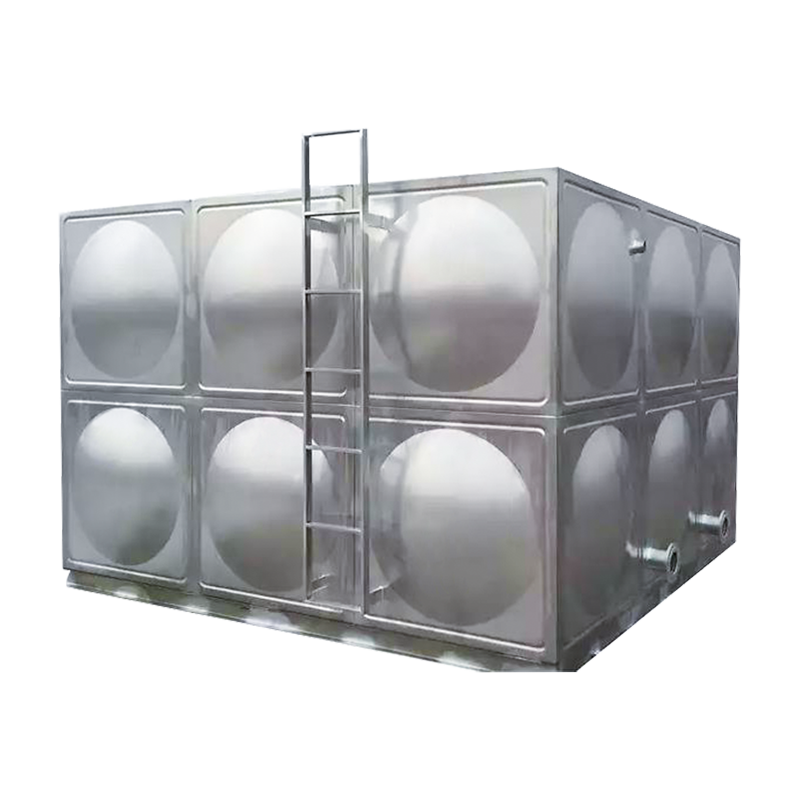

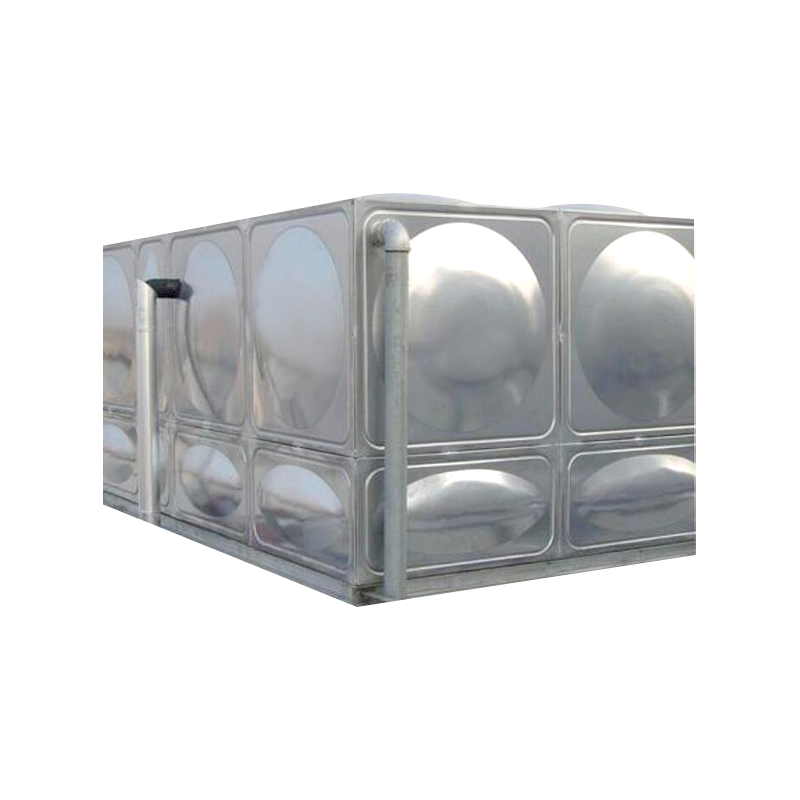

The SW large module water tank cuts the stainless steel plate into the required specifications and forms it by one-time molding and stretching using a 2500T press. After cutting corners, holes are automatically punched. The specifications of each module are 1m (width) * 2 m/3 m (length). The corresponding height is customized according to the height of different water tanks to form a molded block without horizontal seams, and each module is connected by bolts, eliminating the need for welding and forming of each module.

SW large module water tank classification

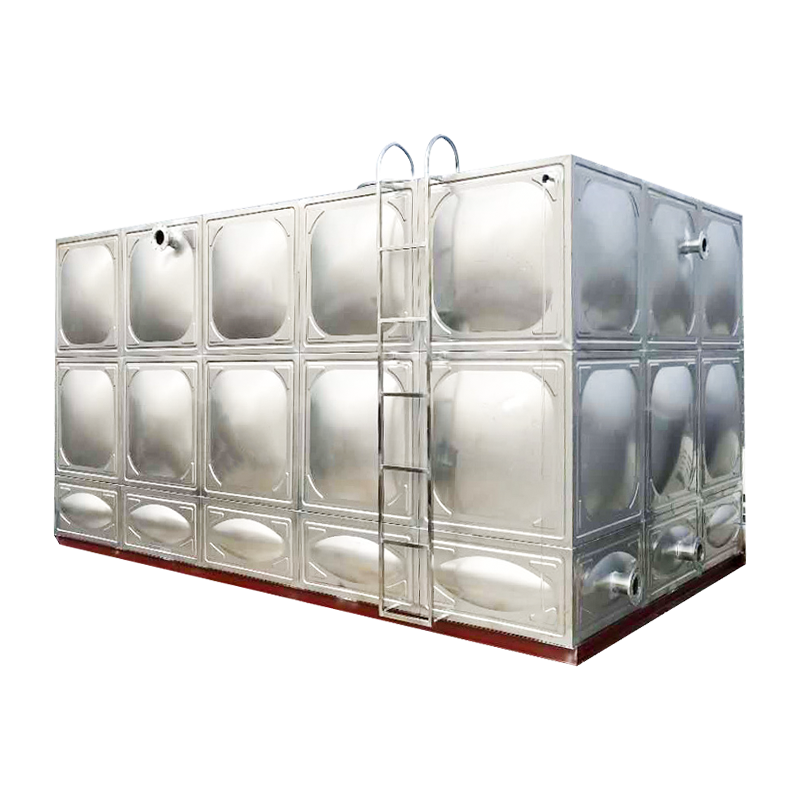

1. SWB-type large modular water tank: a water tank assembled with SUS304 stainless steel plate modules.

2. SWBDF--Type I large module water tank: a water tank assembled on one side by a module made of SUS304-2B stainless steel plate and hot-dip galvanized plate, which are composited by one-time molding and stretching with metal glue.

3. SWBDF--Type II large module water tank: a water tank assembled on both sides by a module made of SUS304-2B stainless steel plate and hot-dip galvanized plate, which are molded and stretched at one time with metal glue.

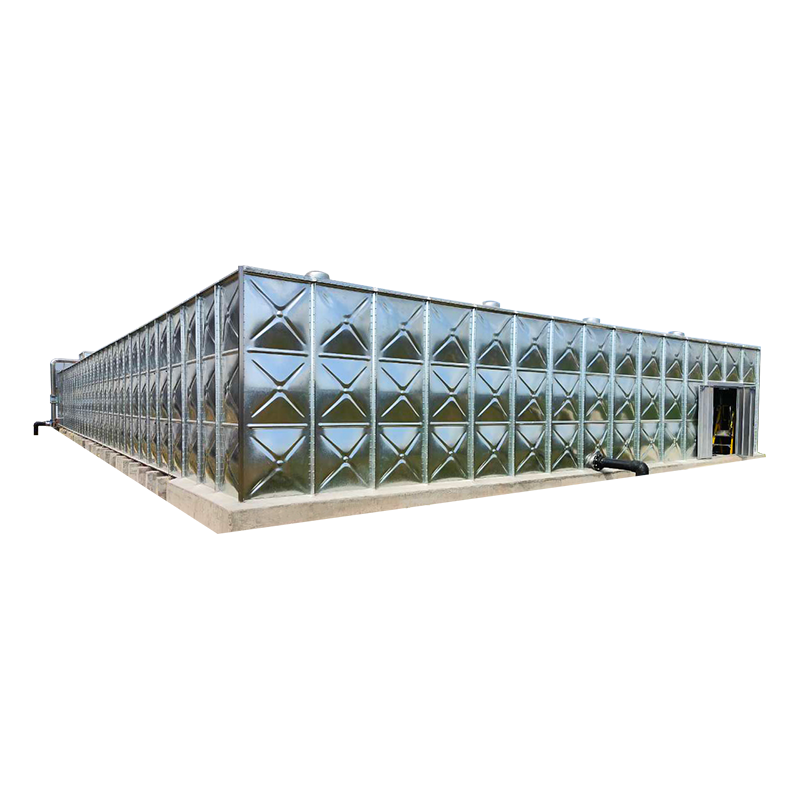

4. SWD large module water tank - a water tank assembled from modules formed by one-time molding and stretching of hot-dip galvanized sheets. Thickness of water tank: 1.5mm, 2.0mm, 3.0mm, 3.5mm, 4.0mm.

Advantages of SW large module water tank

1) Solve the problem of water tank rust and have a service life of more than 70 years: all box modules are formed by one-time stretch molding without welds and are assembled with bolts to avoid intergranular corrosion and stress corrosion after welding.

2) After structural verification by Dongda University and Southwest University, it meets the seismic requirements of the "Code for Seismic Design of Mechanical and Electrical Buildings", and the seismic heat resistance is 6, 7, 8, and 9 degrees respectively.

3) Hygiene: All parts in contact with water are made of SUS30408 sanitary stainless steel.

4) Energy saving and environmental protection

Save labor - Compared with the original welding water tank, the construction period is reduced by about 50%. For example: a 50m³ welding water tank normally requires 10 laborers, but the SWBDF type water tank only requires 5 laborers;

Energy saving - the entire assembly process does not require welding, saving more than 99% of energy compared to the original welded water tank;

Energy saving - this product can be disassembled and regenerated twice;

Environmental protection - Compared with the original welding water tank, it adopts a non-welding assembly to avoid the smoke and arc light generated by welding from polluting the atmosphere and environment.

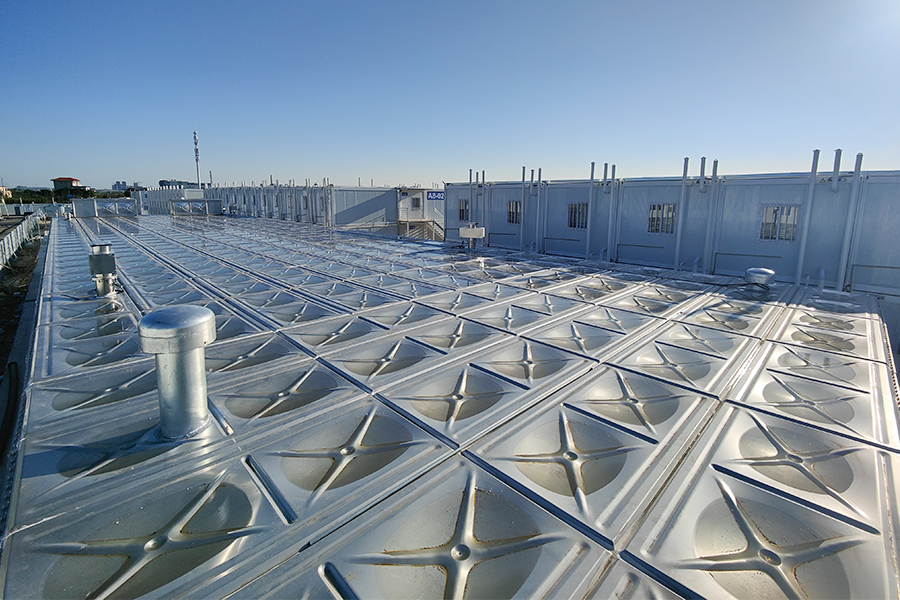

5) High strength and high stiffness: Made of steel with a strength greater than or equal to 235, and an X shape added to the molded convex arc surface, the stiffness is more than 3 times higher than that of a simple convex arc surface.

6) Super high life-price ratio: For example, the sales price of water tanks with the same volume is the same. The service life of a welded water tank is about 10 years before it rusts and corrodes, while the service life of a one-time molded and stretched assembled water tank without horizontal seams is as long as 70 years. years and above, the life-to-price ratio is more than 7 times.

7) The water tank is easy to clean and ensures personnel safety: There are no tie bars inside the water tank, making it easy for personnel to enter and walk, which not only ensures the construction safety of cleaning personnel but also ensures the cleaning quality.

Application scope of SW large module water tank

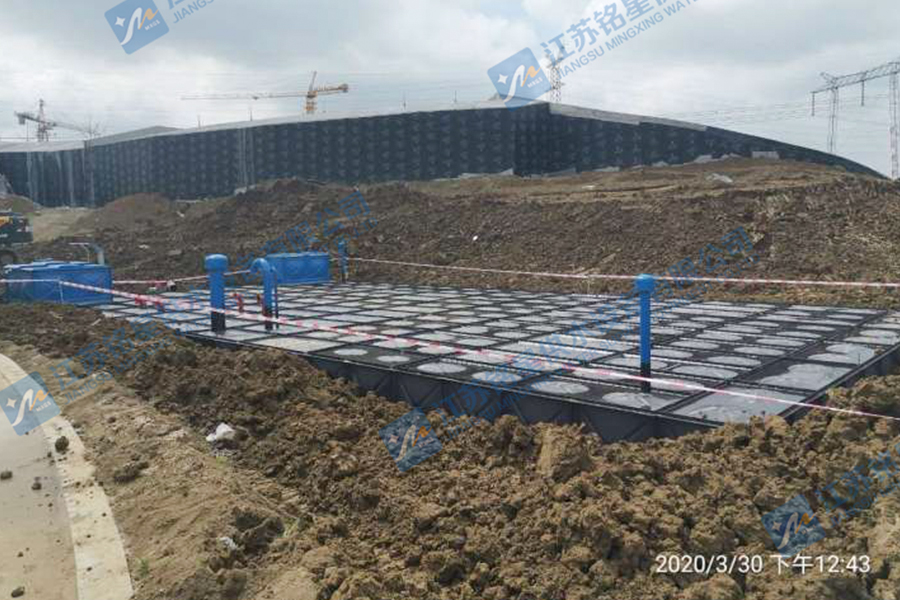

Suitable for domestic hot and cold water tanks, fire water tanks, underground water tanks, etc.
