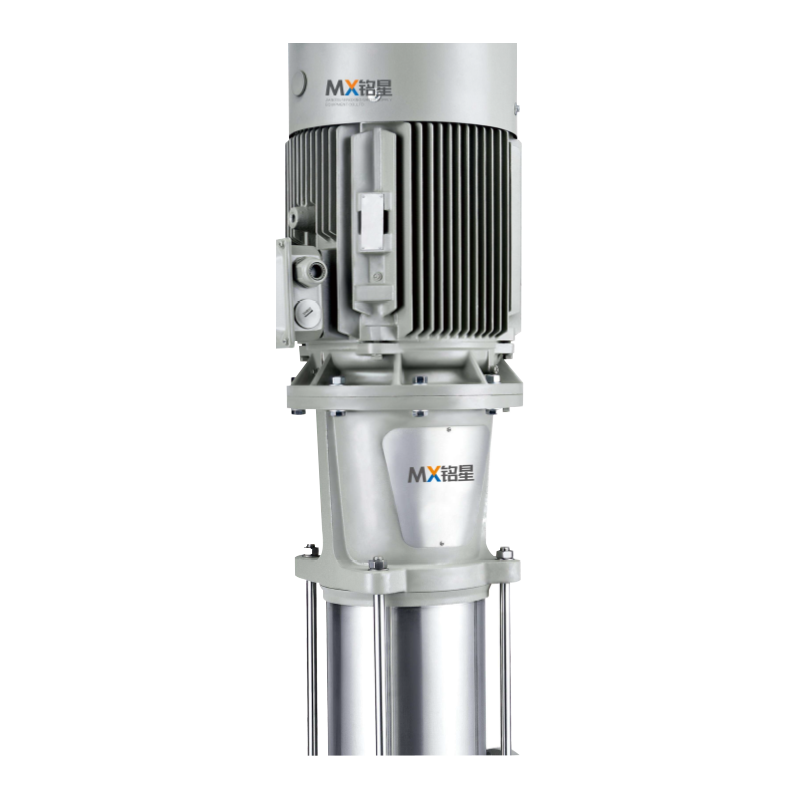

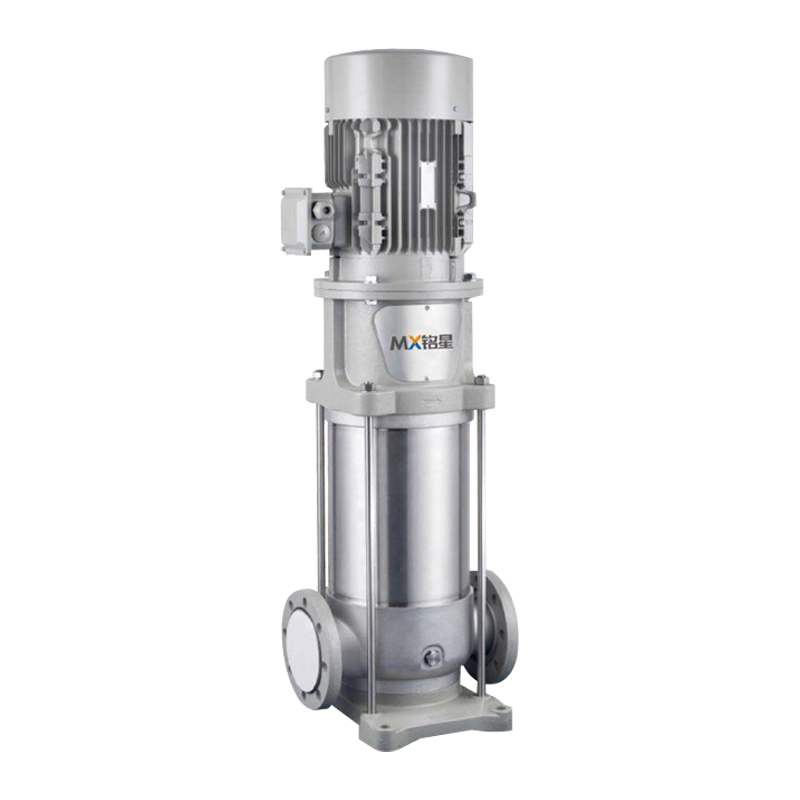

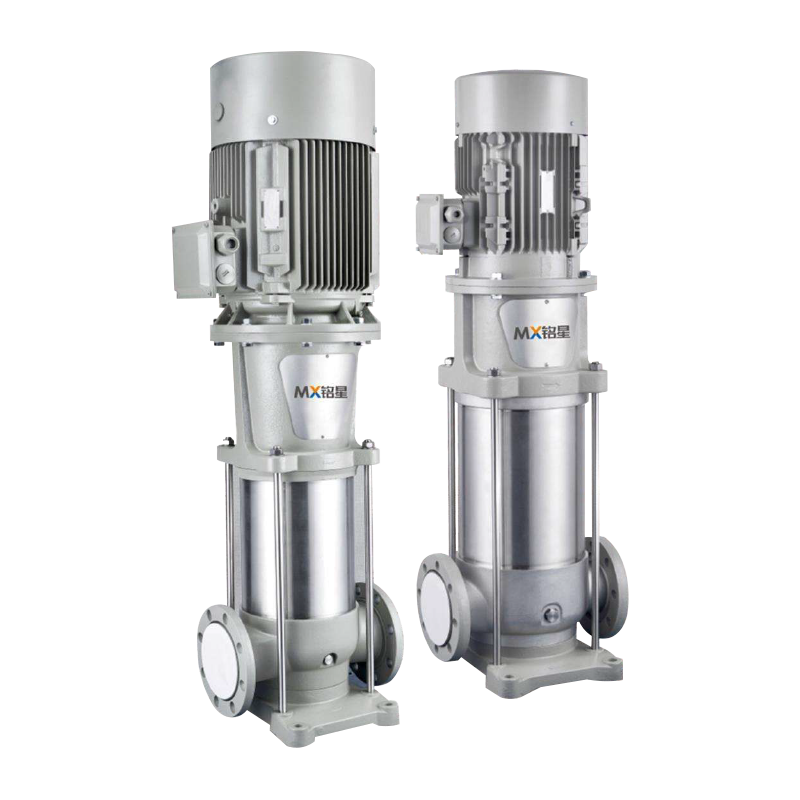

Vertical Multi-Stage Centrifugal Pump

MS, MC is a high-efficiency and energy-saving vertical multi-stage centrifugal pump, through the centrifugal force generated by the impeller of the rotating pump drives the_ rotation of the fluid to complete the transfer of the liquid body, mainly by the main shaft, impeller, guide vane, pump shell, and mechanical sealing. Combination of the pump body and the motor connection. MS, MC series as a booster pump can be used alone, or can be equipped with booster equipment used in building and industrial booster systems, its pipeline structure can ensure that the pump is directly installed in the. same horizontal line and pipe diameter of the same horizontal pipeline system, this design makes the pump structure and pipeline more compact. MS, MC series vertical multistage centrifugal pumps can be installed vertically or horizontally on the pipeline according to the different installation spaces on site. In the case of horizontal installation, the pump needs to add a fixed block to ensure the smoothness of the pump during operation.

Inquiry

PDF Download

Pump connection mode
●Flange connection
●Threaded connection
●Clamp connection
●Oval flange connection

Pump material
●Cast iron
●Stainless steel (AISI304 ,AIS|316)
●Duplex stainless steel (2205)

Motor
●Squirrel cage fully enclosed air-cooled IEC motor, suitable for continuous operation
●Protection grade: IP55
●Insulation class: F
●Standard voltage: 3x220-240/380-415V 1x220- -240V
●Single-phase motors are available from 0.37kW- -2.2kW.

Pump liquid temperature
●Normal temperature pump: liquid temperature-15 ℃ to +70 ℃
●Hot water pump: liquid temperature -15 ℃ to +105 ℃

Performance curve
●All curves are based on motor measurements at a constant speed of 2900rpm or 2950rpm.
●Curve tolerance in line with ISO9906.
●Test using 20°C water without air, kinematic viscosity 1mm2 /s.
●The use of the pump refers to the performance range of the thick line to prevent the flow rate from overheating or excessive flow ambassador motor overload.

Pump operating condition
●Thin, clean, non-flammable and non-flammable liquid containing no particles or fibers (details can be found in the liquid delivery instructions at the end of the sample)
●Ambient temperature: no more than +40 ℃
●Altitude: no more than 1000m

Altitude and ambient temperature
When the pump is operating at an ambient temperature greater than 40° C or an altitude greater than 1000m, the motor output power P2 will be reduced, and the pump in the above cases, the motor power needs to be configured large.
