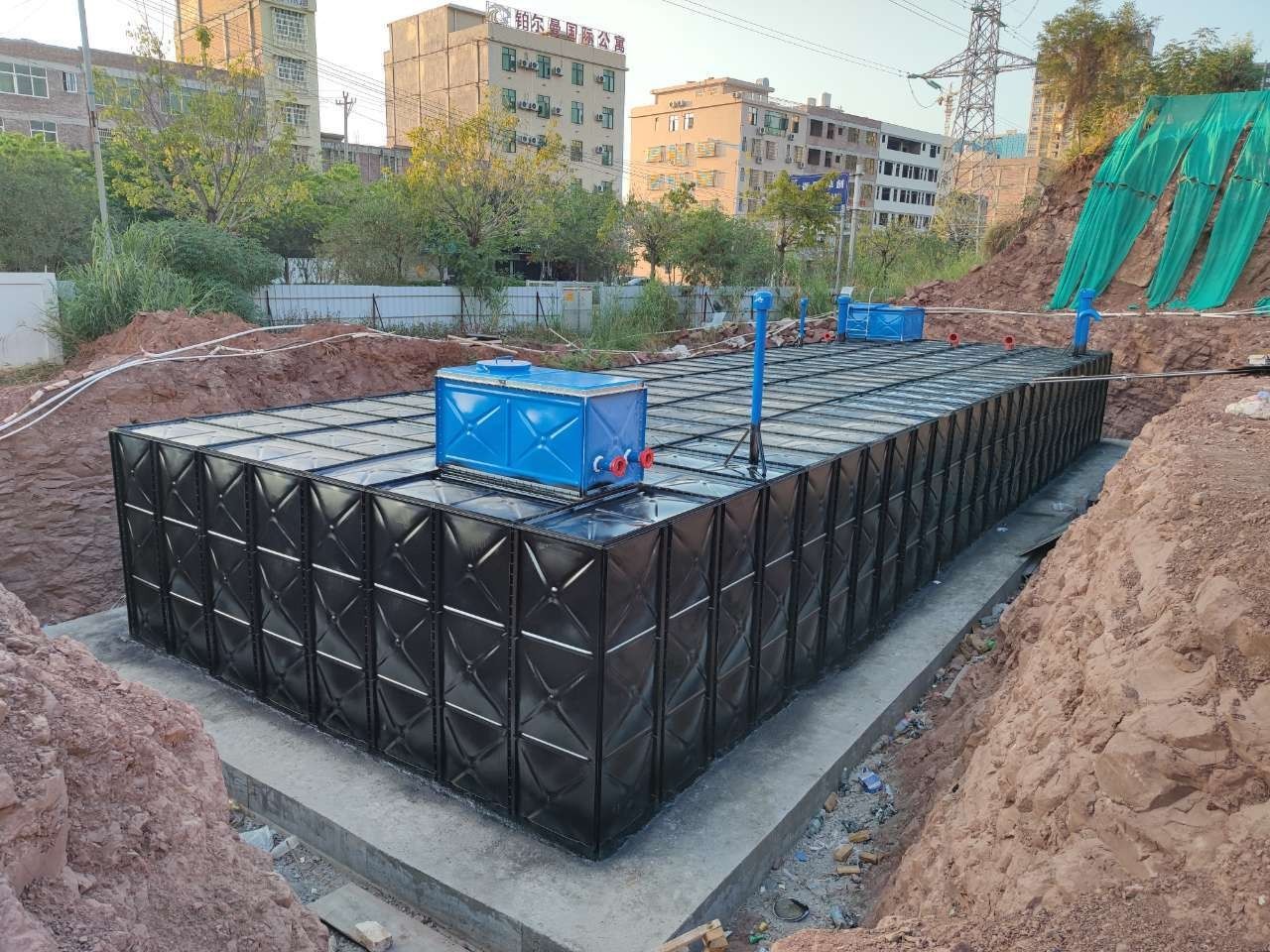

Pump station composition and installation form of anti-floating buried box pump integrated booster water supply equipment

1. Composition of the pump station: mainly composed of a fire water tank (assembled BDF fire water tank), a fire pump room, a fire booster system and a sewage system;

2. Structural form of the anti-floating buried box pump integrated booster water supply equipment: all steel structures are adopted;

3. Installation form: bolt assembly form is adopted;

4. Location of the anti-floating buried box pump integrated booster water supply equipment: above ground or underground;

5. Materials of the water tank and pump room: hot-dip galvanizing or stainless steel or composite steel plate;

6. Internal structure and material of the water tank: full-house scaffolding structure or portal steel frame structure ; Hot-dip galvanized steel pipe or composite material;

7. Internal structure and material of pump room: portal steel frame structure; material is hot-dip galvanized I-beam or composite reinforced I-beam;

8. Pump station bearing capacity: 100-450KN/㎡;

9. Service life of anti-floating buried box pump integrated booster water supply equipment: ≥30 years;

10. Anti-floating: Verification design according to Article 5.4.3 of the foundation design specification;

11. Foundation of anti-floating buried box pump integrated booster water supply equipment: raft foundation;

12. Anti-seepage and anti-leakage: EPDM rubber sealing strips are used;
