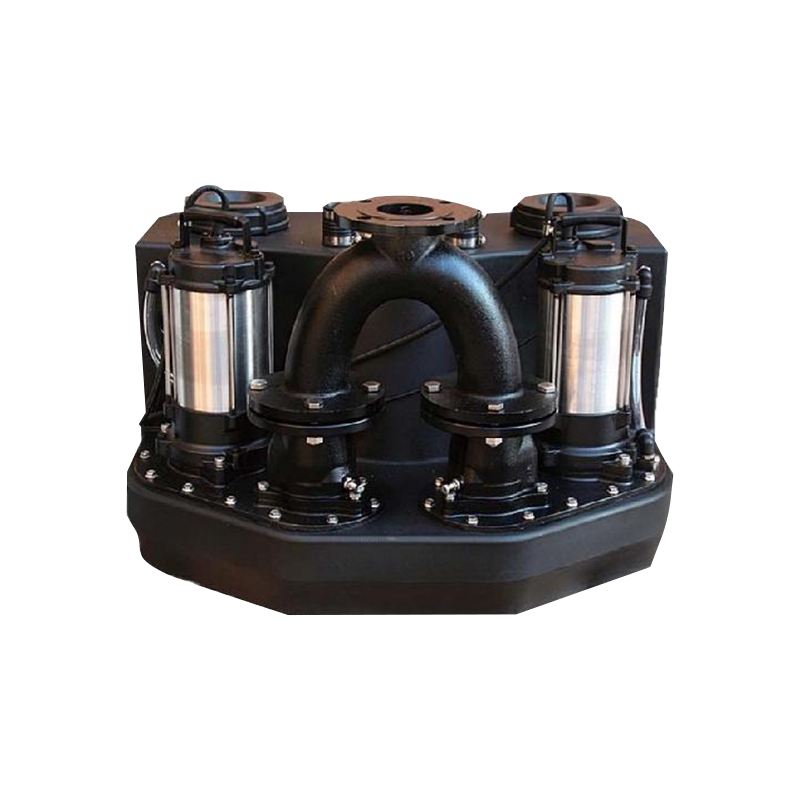

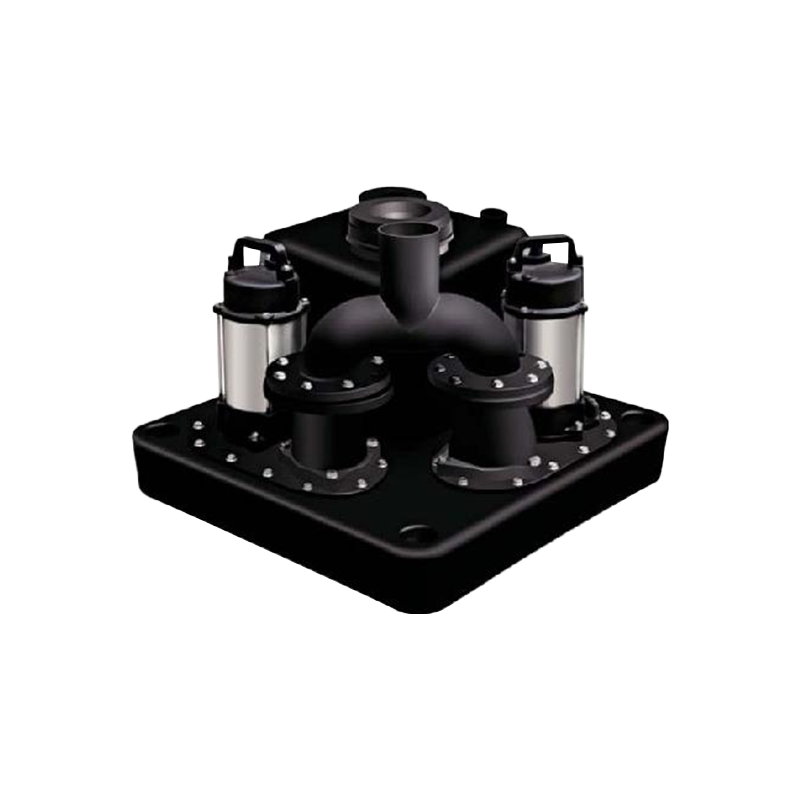

Mingxing 450 series is a large-volume dual-pump lifting device. Mainly used for the sewage drainage of large commercial complexes, public enterprises and institutions, large-scale public places, etc. It is suitable for continuous large-flow drainage places The two pumps are on standby for each other. Generally, they operate alternately. When there is a flow peak, the two pumps operate simultaneously. If one pump fails, the system will automatically switch to the single pump operation mode, shield the faulty pump, display, and alarm. Thus greatly extending the service life of equipment and reducing maintenance costs. Optional power supply: 380V/220V.

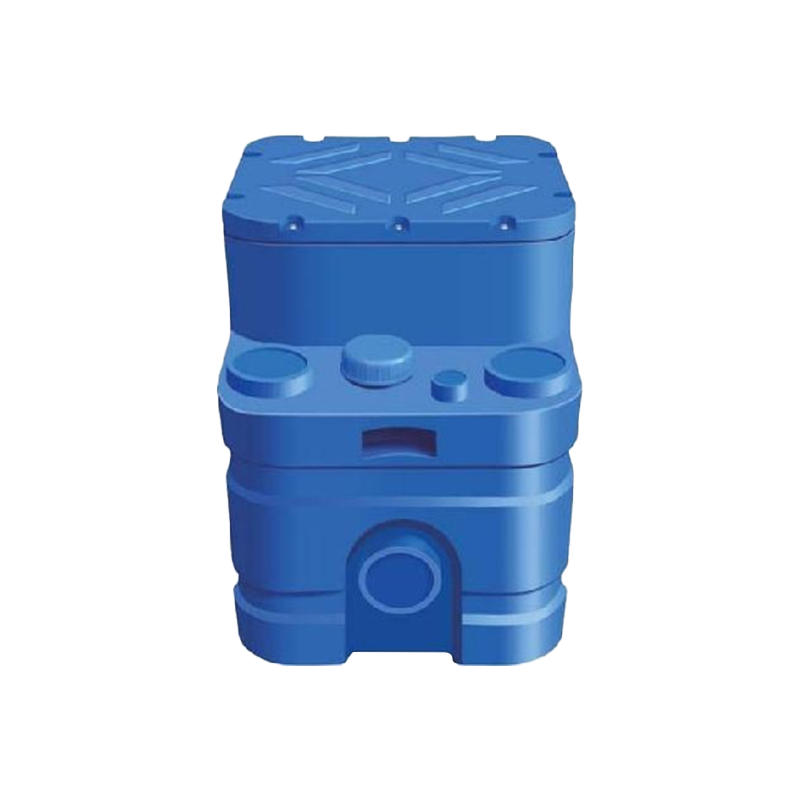

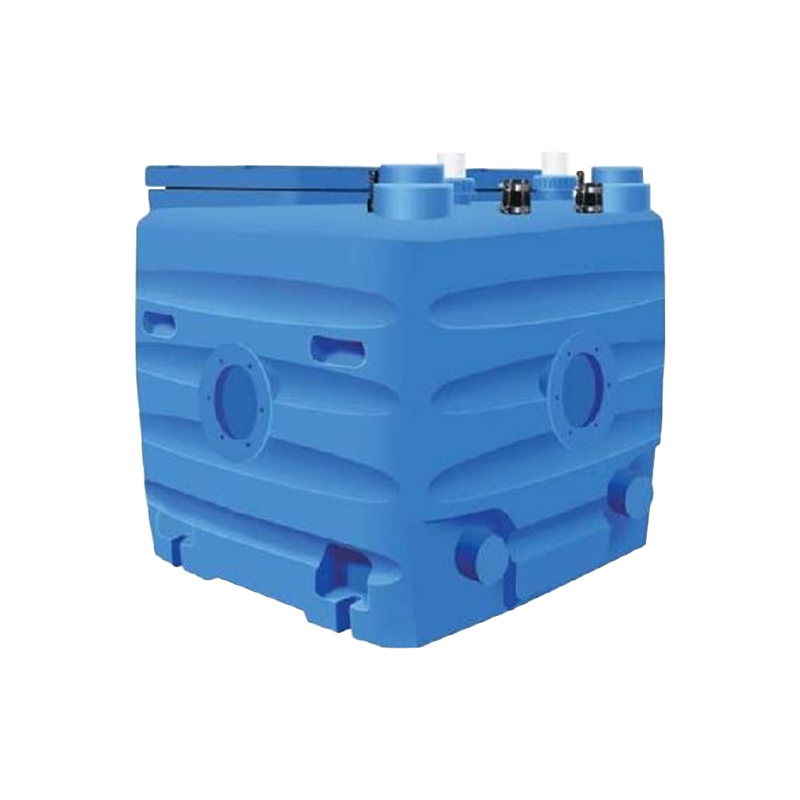

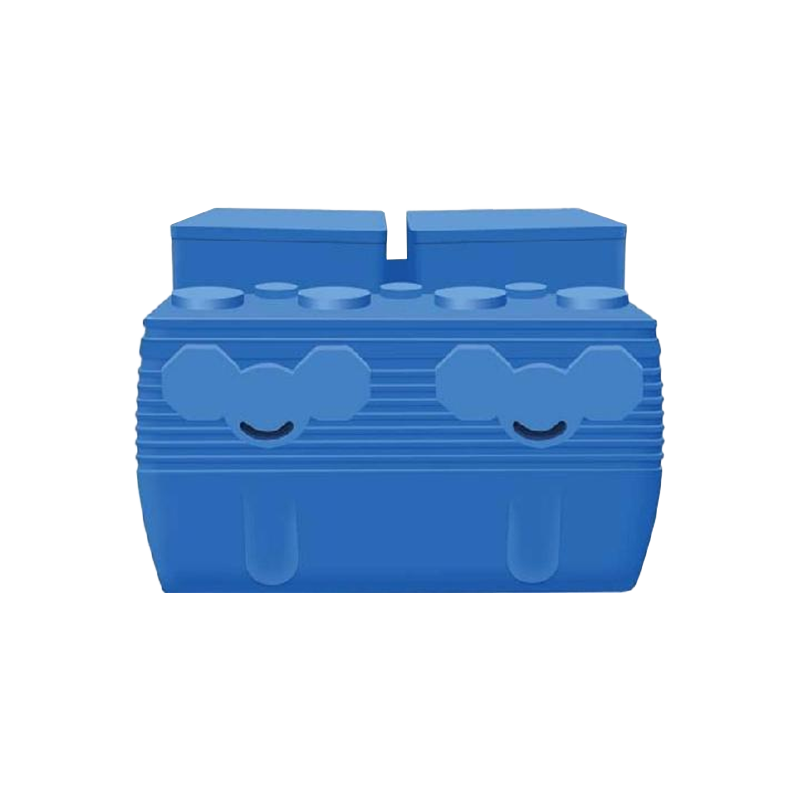

Mingxing 150 series is equipped with a corrosion-resistant and environmental PE water tank, with good sealing and durability. The tank capacity is about 450L. Multiple horizontal/vertical inlets are reserved for easy installation.
Inquiry
Product Description
Performance Features
1. The pump is equipped with an on-blocking vortex impeller.
Optional power: 2.2kw~ 3.7kw
2. Pump body material: HT250, SUS304
3. Vortex impeller material: HT250; Pump Shaft Material: SUS410
4. Maximum flow diameter:60mm
5. Maximum pump startup times:120 times/ hour
6. Equips with DN80 check valve
7. Cable length between controller and pump/float:5 meters
8. Outlet pipe diameter DN8O vertical outlet (variable diameter)
9. Starting mode: air pressure/float dual-level control.
Unique double-protection design
10. Machine waterproof grade: IP68(excluding control box)
11. Anti-floating fixed installation (anchor bolt)
Product Overview
Our large-displacement dual-pump sewage lifting device is an efficient and reliable sewage treatment equipment designed to solve the problem of domestic sewage discharge. The device adopts an advanced dual-pump system to ensure stable operation under any circumstances and effectively cope with the needs of large-flow sewage discharge.
Product Features
1. Dual-pump mutual backup design: The device is equipped with two high-performance water pumps, which are backup for each other. When one water pump fails, the other water pump will automatically start to ensure uninterrupted sewage discharge, greatly improving the service life and reliability of the equipment.
2. Efficient and large-flow treatment: The device adopts a large-displacement design and can efficiently treat a large amount of sewage. It is suitable for places that require continuous large-flow drainage. Its maximum particle size can reach 50mm, ensuring that solid particles will not block the pipeline.
3. Intelligent control: The device is equipped with a fully automatic control cabinet, which supports automatic and manual dual-channel control, without manual supervision. The float switch can automatically control the start and stop of the water pump according to the change of liquid level, which is easy to operate and safe to use.
4. Environmentally friendly materials: The box is made of corrosion-resistant polyethylene (PE) material, which has good airtightness, durability, compactness and lightness, and is suitable for installation and use in limited space.
5. Multiple water inlet design: Multiple water inlets are reserved, which can be flexibly arranged according to actual needs to adapt to different complex water inlet requirements.
6. Low noise design: The equipment has low noise during operation, not exceeding 40 decibels, and will not interfere with the surrounding environment.
Advantages and Value
Efficient and reliable: The dual pump mutual backup design ensures that the equipment can operate stably under any circumstances, avoiding sewage discharge interruption caused by equipment failure.
Energy saving and environmental protection: Adopt efficient energy-saving technology to reduce energy consumption and reduce operating costs.
Intelligent management: Intelligent control system and remote monitoring function to improve management efficiency and reduce labor costs.
Wide application: Applicable to a variety of complex drainage scenarios to meet the needs of different users.
